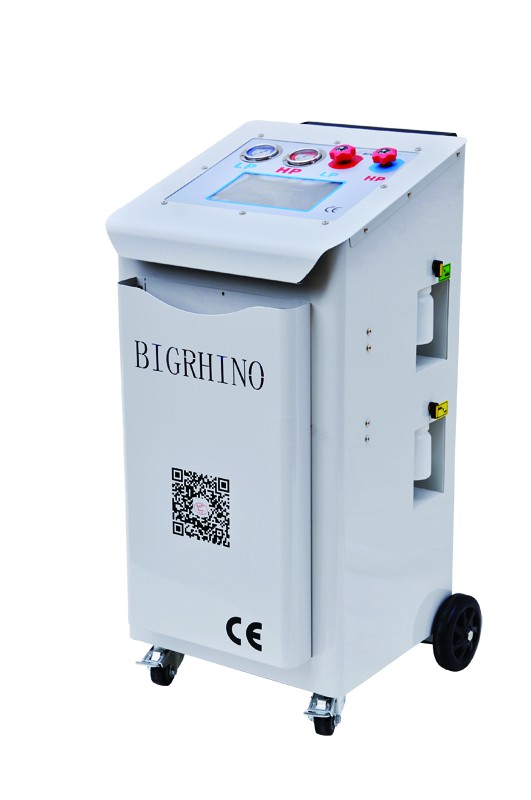

REFRIGERANT RECOVERY&RECHARGE MACHINE-AC-600 -BIGRHINO

Name:AC-600

Functions:
Refrigerant recovery: Rely on the machine’s internal system filtering device to recover the refrigerant into the work tank.
Refrigerant recycle: Separating refrigerant oil and moisture in air conditioning system to reach the reuse standards and ensure the purity of refrigerant, so the refrigerant can be recycled.
Refrigerant charging: Refrigerant supplementary injecting setting, adding the appropriate amount of refrigerant to the vehicle.
Leakage Test: leakage test on the air conditioning pipe, ensure a good seal .
Vacuuming: vacuuming for air- conditioning and equipment pipe
Refrigerant oil recharge: Refrigerant oil injecting setting, add the oil to the air conditioning system
Optional function: A/C system cleaning
Futures:
1,Power supply:	AC220V±10%
2. Rate:	50/60Hz
3,Environmental temperature:	0℃～＋40℃
4. Relative humidity:	＜ 85%
5,Outer magnetic field intensity:	＜ 400Ａ／m
Specifications:
Compressor Power:	260w;
Vacuum Pump Speed:	60L/min ;
Capacity of Refrigerant Scale:	60kg
Accuracy of Refrigerant Scale:	± 20g;
Recovering Speed:	180g/min;
Recharging Speed:	800g/min
Tank Capacity:	12L;
Length of External Hose:	2.0M;
Weight:	75kg;
Dimension:	680×600×1160mm
